Hey there! As a supplier of Center Support Pins, I'm super stoked to share with you the quality control measures we take during production. Quality control ain't no joke, especially when it comes to components like Center Support Pins that play a crucial role in various industries.
Material Selection
The first step in ensuring top - notch quality is choosing the right materials. We source our raw materials from trusted suppliers. We look for materials that have high strength, good wear resistance, and excellent dimensional stability. For example, we often use high - grade alloy steels. These steels are known for their ability to withstand heavy loads and resist deformation over time.
Before we even start the manufacturing process, we conduct a series of tests on the incoming materials. We check for chemical composition using spectrometers. This helps us make sure that the material has the right balance of elements, which directly affects its mechanical properties. We also perform hardness tests. A material with the wrong hardness can lead to premature failure of the Center Support Pin. By using a hardness tester, we can quickly determine if the material meets our standards.
Machining Process Control
Once we've got the right materials, it's time to start machining. The machining process is where the raw material is transformed into a Center Support Pin. We use state - of - the - art CNC (Computer Numerical Control) machines for precision machining. These machines are programmed to cut, drill, and shape the material with extremely high accuracy.
During the machining process, we have in - process inspections. Our quality control team regularly checks the dimensions of the pins being machined. They use precision measuring tools like calipers, micrometers, and coordinate measuring machines (CMMs). The CMMs are especially cool because they can measure the 3D dimensions of the pin with high precision, ensuring that all the features are within the specified tolerances.
We also monitor the surface finish of the pins. A smooth surface finish is important as it reduces friction and wear. We use surface roughness testers to measure the surface roughness. If the surface finish doesn't meet our standards, we make adjustments to the machining parameters, such as the cutting speed or the feed rate.
Heat Treatment
Heat treatment is a critical step in the production of Center Support Pins. It helps to improve the hardness, strength, and toughness of the pins. We have a dedicated heat treatment facility where we carefully control the heating and cooling processes.
We use a process called quenching and tempering. First, the pins are heated to a specific temperature and then rapidly cooled (quenched) in a quenching medium like oil or water. This makes the pins hard. But hard pins can also be brittle, so we then temper them by heating them to a lower temperature and holding them there for a certain period. This reduces the brittleness and improves the toughness of the pins.
After heat treatment, we conduct another round of hardness tests and microstructure analysis. We use metallographic microscopes to examine the internal structure of the pins. A proper microstructure is essential for the long - term performance of the pins. If the hardness or the microstructure is not right, we may need to repeat the heat treatment process.
Assembly and Final Inspection
Once the individual parts of the Center Support Pin are machined and heat - treated, it's time for assembly. During assembly, we make sure that all the components fit together perfectly. We use fixtures and gauges to ensure proper alignment.
After assembly, we perform a final inspection. This includes a visual inspection to check for any surface defects like cracks, scratches, or burrs. We also do a functional test. We simulate the actual working conditions of the Center Support Pin to make sure it performs as expected.
We check the load - bearing capacity of the pins. We use hydraulic testing machines to apply a specific load to the pins and measure their deformation. If the deformation is within the acceptable range, the pin passes the test.
Documentation and Traceability
Throughout the production process, we maintain detailed documentation. Every test result, every inspection record, and every production parameter is recorded. This documentation is not only important for quality control but also for traceability.
If there is ever an issue with a Center Support Pin, we can trace back every step of its production. We can find out which batch of raw materials was used, which machines were involved in the machining process, and what the heat treatment parameters were. This helps us quickly identify the root cause of the problem and take corrective actions.
Related Products

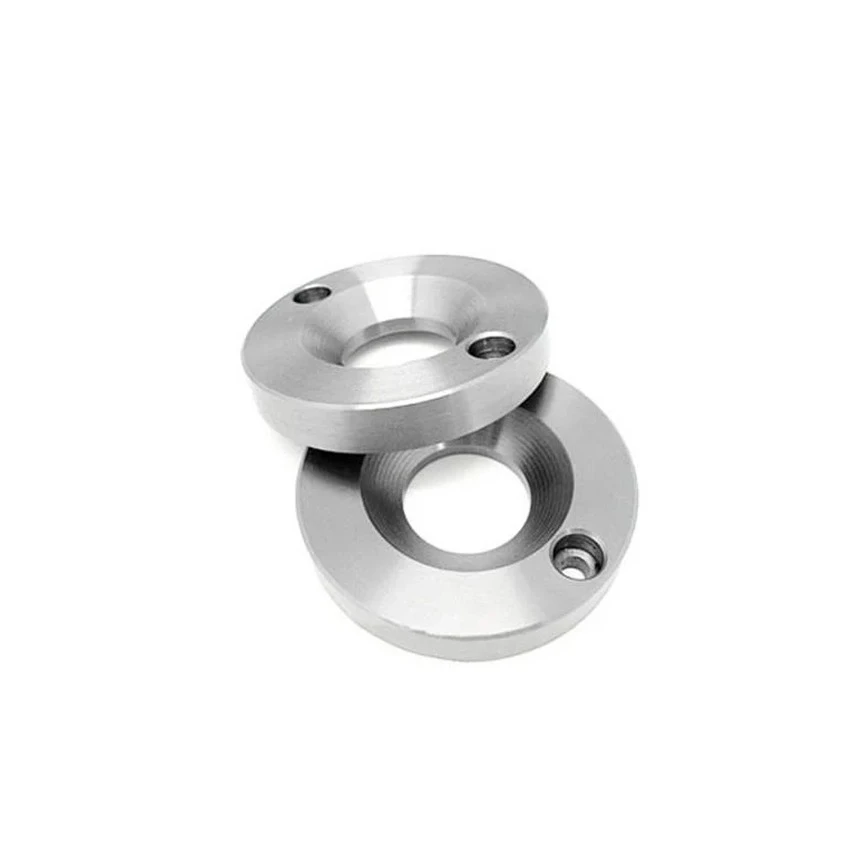

If you're interested in other related mold components, check out our Middle Support Pin, Support Pillar Mold, and Mold Locating Ring. These products also go through similar rigorous quality control measures to ensure they meet the highest standards.
Let's Connect
We're always looking for new partners and customers. If you're in the market for high - quality Center Support Pins or any of our other products, don't hesitate to reach out. We're confident that our quality control measures will give you peace of mind knowing that you're getting a reliable product. Whether you have a small - scale project or a large - scale industrial application, we've got the right solution for you.
